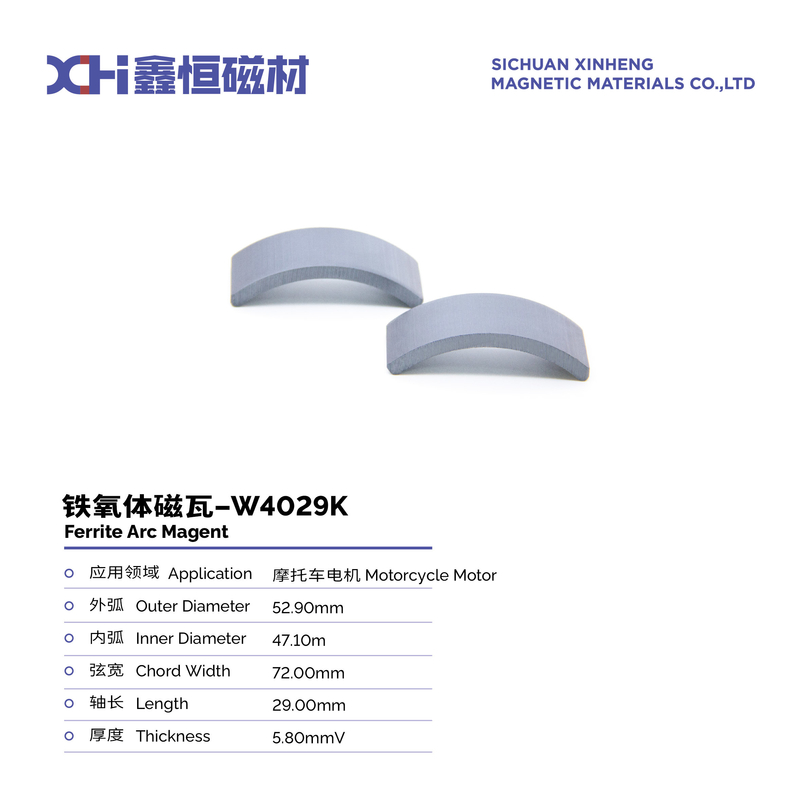

Rectangular Sintered Ferrite Magnet Can Be Used In Motorcycle Motors W4029K

Product Details

Place of Origin: Sichuan, China

Brand Name: XINHENG

Certification: IATF16949,ISO9001

Model Number: W4029K

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Negotiation

Packaging Details: Carton+pallet

Delivery Time: 10-15days

Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000 ton per year

Get Best Price
Highlight:

TS16949 Ferrite Arc Magnet

,

Fe2O3 Ferrite Arc Magnet

,

TS16949 Starter Motor Magnets

Product Name:
Ferrite Motor Magnets
Application:
Starting Motorcycle Motor
Shape:
Arc,Tile
Type:
Anisotropic Sintered Magnet
Composite:
Ferrite Strontium Powder
Size:
(R52.9mm-r47.1mm)×72mm
Processing:
Wet Molding
Coating:
No Coating
Package Size:
340mm×255mm×75mm
Quantity Per Carton:
840pcs
Product Name:
Ferrite Motor Magnets
Application:
Starting Motorcycle Motor
Shape:
Arc,Tile
Type:
Anisotropic Sintered Magnet
Composite:
Ferrite Strontium Powder
Size:
(R52.9mm-r47.1mm)×72mm
Processing:
Wet Molding
Coating:
No Coating
Package Size:
340mm×255mm×75mm
Quantity Per Carton:
840pcs
Rectangular Sintered Ferrite Magnet Can Be Used In Motorcycle Motors W4029K

Rectangular Sintered Ferrite Magnet Can Be Used In Motorcycle Motors W4029K​



What does Xinheng offer to customers?

Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.



What's the feature of ceramic strontium ferrite magnet made by wet compression molding?

  • Composition - Contain strontium ferrite (SrFe12O19) as the primary magnetic material. Strontium ferrite has good magnetic properties and is inexpensive to produce.

  • Density - Have a high relative density of around 95% or more after sintering. This gives good mechanical strength.

  • An-isotropy - Exhibit strong magnetocrystalline an-isotropy due to their hexagonal crystal structure. This results in a preferred direction of magnetization along one axis.

  • Particle shape - The strontium ferrite powder used typically has a hexagonal platelet morphology which helps promote magnetic an-isotropy during molding and sintering.

  • Molding method - The powder is mixed with a liquid binder and compression molded into a dense green compact using high pressures. This orients the an-isotropic particles.

  • Firing process - The compact is then sintered at high temperature to develop density while preserving the induced magnetic anisotropy orientation from molding.

  • Remanence - Have a maximum magnetic flux density or remanence along the axis of anisotropy, but little/no remanence perpendicular to it.

  • Coercivity - Usually have medium to high coercivity depending on additives, density, and anisotropy level achieved.





What's the key advantages of ceramic strontium ferrite magnets made by wet compression molding?

  • Low cost - Strontium ferrite is inexpensive and the wet molding process is relatively simple. This makes them cheaper than rare-earth magnets.

  • High magnetic property-Even without heavy rare earth element additions, strontium ferrite magnets can achieve coercivities of 700-1000 kA/m, making them suitable for many applications.

  • Dimensional consistency - The compression molding process allows for close dimensional tolerances and uniform magnet shapes to be produced consistently.

  • Temperature stability - Strontium ferrite magnets have high Curie temperatures, typically around 450-470°C. They maintain good magnetic properties over a wide operating temperature range.

  • Resistance to corrosion - Being fully dense ceramic materials, they are not prone to corrosion like bonded magnets containing additives.

  • Mass production capability - The molding process is amenable to automated high-volume manufacturing of complex magnet geometries.​​



PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS

  Units Sintered Ferrite (Ceramic)
Curie Temperature ºC 450
Maximum Operating Temperature ºC 350
Hardness Hv >530
Density g/cm3 4.8 – 5.0
Relative recoil permeability μrec 1.05-1.1
Temperature Coefficient Br %/ºC -0.18
Temperature Coefficient iHc %/ºC 0.11-0.40
Anti-Bending Strength N/m2 (0.5-0.9)×108
Anti-Compressive Strength N/m2 ≥6.9×108
Anti-Tensile Strength N/m2 (0.2-0.5)×108
Specific Heat J/kg·K 600-900
Resistivity Q.cm >104



Rectangular Sintered Ferrite Magnet Can Be Used In Motorcycle Motors W4029K 0

What's the application of Xinheng's permanent ferrite magnets?



Xinheng mainly manufactures the following types of ceramic arc segment magnets:

  • Automotive motor magnet including automobile starter motor magnet, automobile wiper motor magnet, automobile rolling window motor magnet, automobile heating and cooling fan motor magnet, automobile seat motor magnet, automobile sunroof motor magnet, automobile powsteering motor magnet, automobile tailgate motor magnet, automobile oil pump motor magnet, automobile ABS anti-lock motor magnet, etc.
  • Inverter home appliance magnet including inverter washing machine motor magnet, inverter refrigerator motor magnet, inverter air-conditioner motor magnet,etc.
  • Fan motor magnet including ceiling fan motor magnet, floor fan magnet, etc.
  • Motorcycle motor magnet including motorcycle starter motor magnet, motorcycle flywheel magneto magnet, etc.
  • Electrical tool motor magnet including cutting machine motor magnet, electric sawing machine motor magnet, lawn mower motor magnet, gasoline generator magnet, etc.
  • Actuator motor magnet including medical bed actuator motor magnet, TV lifting bracket actuator motor magnet, desk lifting actuator motor magnet, smart home appliance actuator motor magnet, etc.

How Xinheng fabricates its permanent strontium ferrite magnet?

Rectangular Sintered Ferrite Magnet Can Be Used In Motorcycle Motors W4029K 1

Rectangular Sintered Ferrite Magnet Can Be Used In Motorcycle Motors W4029K 2



FERRITE POWDER GRADE OF MOTORCYCLE MOTORS MAGNET



Grade Br(mT) Hcb(KA/m) Hcj(KA/m) (BH)max(KJ/m3)
mT Gs KA/m Oe KA/m Oe KJ/m3 MGOe
Y33 410-430 4100-4300 220-250 2760-3140 225-255 2830-3200 31.5-35.0 3.9-4.4
Y33H 410-430 4100-4300 250-270 3140-3390 250-275 3140-3450 31.5-35.0 3.9-4.4
Y33H-2 410-430 4100-4300 285-315 3580-3960 305-335 3830-4200 31.8-35.0 4.0-4.4
Y34 420-440 4200-4400 200-230 2510-2890 205-235 2570-2950 32.5-36.0 4.1-4.4
Y35 430-450 4300-4500 215-239 2700-3000 217-241 2730-3030 33.1-38.2 4.1-4.8
Y36 430-450 4300-4500 247-271 3100-3400 250-274 3140-3440 35.1-38.3 4.1-4.8
Y38 440-460 4400-4600 285-305 3580-3830 294-310 3690-3890 36.6-40.6 4.6-4.8
Y40 440-460 4400-4600 330-354 4150-4450 340-360 4270-4520 37.6-41.8 4.7-5.2



MOTORCYCLE MOTORS MAGNET SPECIFICATION TABLE



No.



Item



R



r



W



L



h



Grade



Application

1 W118 68.1 60.7 25 25 7.50 Y33H 1KW inverter motor
2 W018F 72.5 60.7 27.9 35 11.80 Y40 2KW inverter motor
3 W005A 72.5 60.5 29.5 42 11.80 Y33H 2.3KW inverter motor
4 W050E 87.3 78.5 24 40 8.80 Y33H 2.6KW inverter motor
5 W159 74.1 65.5 28.86 47 8.60 Y40 2.8KW inverter motor
6 W017F 86.5 78.5 24.0 51 7.90 Y33H-2 3KW inverter motor
7 W087 86.5 78.5 24.0 64 7.80 Y33H-2 5KW inverter motor
8 W138C 101 90.2 24.5 65 10.8 Y40 7KW inverter motor
9 W019B 112 100 28.5 60 11.90 Y40 9KW inverter motor



Introduction Of Motercycle Motor:

Starter Motor: Permanent magnet ferrites find application in the starter motor of motorcycles. The starter motor is responsible for starting the engine by cranking it until it reaches the necessary speed for combustion. Ferrite magnets provide the required magnetic field strength for the starter motor's operation, allowing reliable and efficient engine starts.
