Place of Origin: | Sichuan, China |
---|---|
Brand Name: | HTCD |
Certification: | IATF16949,MSDS,RoHS,SGS,ISO9001 |
Model Number: | w078A |
Minimum Order Quantity: | 100pcs |
Price: | Negotiation |
Packaging Details: | Customized packaging |
Delivery Time: | 10-15 |
Payment Terms: | L/C, T/T |
Supply Ability: | 300k pcs |
Processing Service: | Cutting | Shape: | ARC |
---|---|---|---|
Size: | Customized Magnet Size | Composite: | Ferrite Magnet, Ceramic Magnet / Hard Ferrite Magnet |
Surface Treatment:: | No Coating | Tolerance: | 0.05mm ~ 0.1mm |
Certification: | IATF16949,MSDS,RoHS,SGS,ISO9001 | Density: | 4.9g/Cm3 - 5.1g/Cm3 |
Shape: | Round, Block/Rectangular,Disc,Bar,Ring,Segment,Ect | Grade: | Y10T,Y20,Y25,Y30,Y30BH,Y33,Y33BH,Y35(Or C1,C5,C11 And So On) |
Material: | SrO(Strontium Oxide) OR BaO( Barium Oxide ) And Fe2o3( Ferric Oxide) | Processing: | Sintered Magnet |
High Light: | ARC starter motor magnets,Ferrite starter motor magnets,IATF16949 Ceramic arc Magnets |

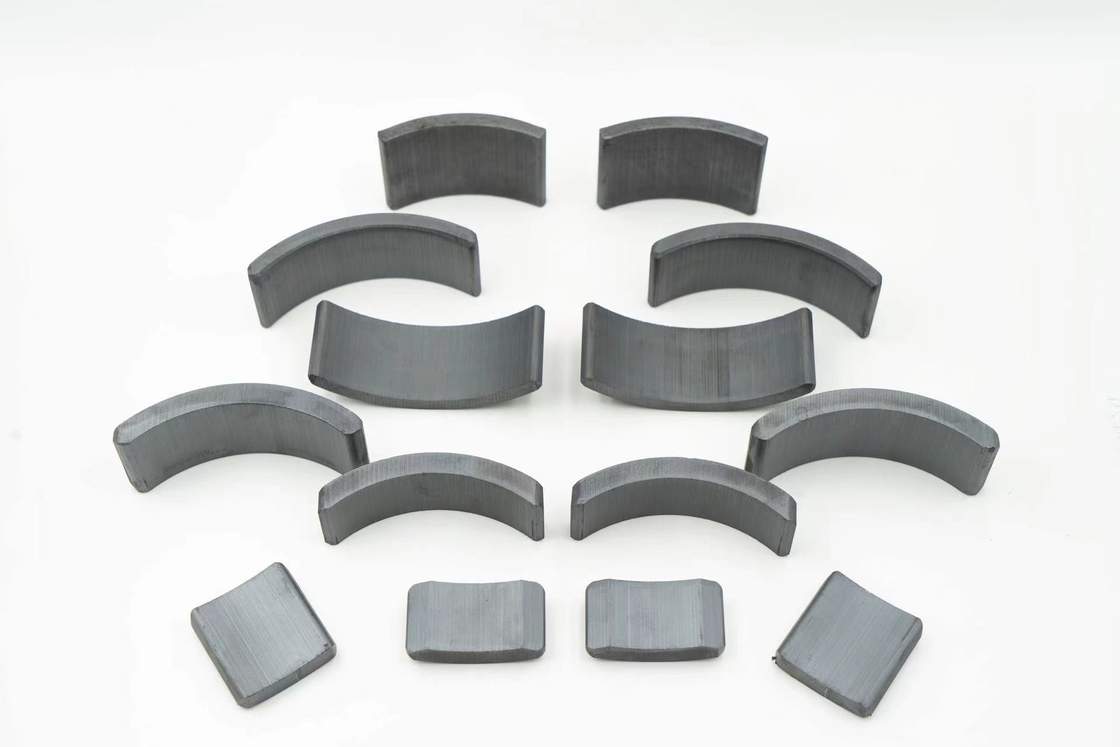

factory customized starter motor magnets and block shape ferrite magnet
Permanent type magnet :
Single pole/ 1 pole magnetization/ 3 poles magnet
Oblique magnetization
Multi Poles magnetization
Diametrically magnetized
Soft type magnet :
Produce CSC cores with competitive price
All kinds of soft magnet,sendust,mpp,iron powder,
mega flux,high flux,ferrite core, inculde KDM etc.
Low permeability material have meet American and Korea standard,
Ferrite magnets are sintered permanent magnets composed of Barium or Strontium Ferrite. This class of
magnets, with good resistance to demagnetization and high working temperature, has the popular
advantage of low cost. There are anisotropic and isotropic Ferrite magnets.
Specification
Shape
|
Customized (Block, Disc, Cylinder, Bar, Ring, Countersunk, Segment, Hook, Trapezoid, Irregular shapes, etc)
|
|
Performance
|
N52/Customized (N33 N35 N38 N40 N42 N45 N48 N50 N52 ......)
|
|
Coating
|
Ni-Cu-Ni,Nickel Customized (Zn,Ni-Cu-Ni,Ni,Gold, Silver, Copper, Epoxy, Chrome, etc)
|
|
Magnetization
|
Thickness Magnetized, Axially Magnetized,
Diametrally Magnetized, Multi-poles magnetized, Radial Magnetized. (Customzied specific requirements magnetized) |
|
Max. Working
Temperature
|
Grade
|
Max. Operating Temperatures
|
N35-N52
|
80°C (176°F)
|
|
33M- 48M
|
100°C (212°F)
|
|
33H-48H
|
120°C (248°F)
|
|
30SH-45SH
|
150°C (302°F)
|
|
30UH-40UH
|
180°C (356°F)
|
|
28EH-38EH
|
200°C (392°F)
|
|
28AH-35AH
|
220°C (428°F)
|
1. Material:strong Y35 ferrite magnet
2. Grade: Y25, Y30, Y30BH, Y33,Y33BH,Y35
3. Shape: Arc, Block, Bar, Ring, Cube, Disc, or others.
5. Application: Widely used in ammeter, speaker, audio, phone, TV, dynamo, DC permanent magnet motors (used in cars), etc
