Product Details
Place of Origin: Sichuan, China
Brand Name: XINHENG
Certification: IATF16949,ISO9001
Model Number: W1008H
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ton per year
Product Name: |
Ferrite Motor Magnets |
Application: |
Fan Motor |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R75mm-67rmm)×20mm |
Processing: |
Wet Pressed |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
840pcs |
Product Name: |
Ferrite Motor Magnets |
Application: |
Fan Motor |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R75mm-67rmm)×20mm |
Processing: |
Wet Pressed |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
840pcs |

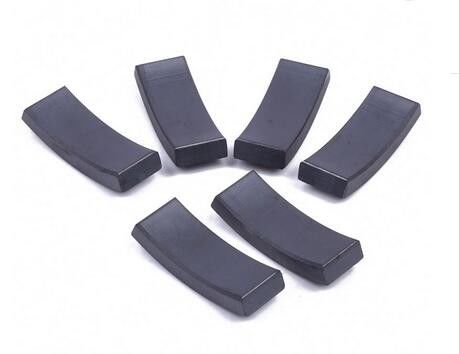

Anisotropic Super Strong Sintered Permanent Magnet Ferrite For Air Conditioning Motor
Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.
What is permanent magnet ferrite?
Set clear performance objectives: Determine specific goals for the product's performance, such as speed, reliability, efficiency, and user satisfaction.
Establish performance measures: Define key performance indicators (KPIs) to evaluate the product's performance, such as error rates, response times, and customer feedback.
Collect data: Gather relevant data on the product's performance, such as user feedback, system logs, and performance tests.
Analyze the data: Evaluate the collected data to assess the product's performance against the established objectives and measures.
How to determine the performance of the product?
Set clear performance objectives: Determine specific goals for the product's performance, such as speed, reliability, efficiency, and user satisfaction.
Establish performance measures: Define key performance indicators (KPIs) to evaluate the product's performance, such as error rates, response times, and customer feedback.
Collect data: Gather relevant data on the product's performance, such as user feedback, system logs, and performance tests.
Analyze the data: Evaluate the collected data to assess the product's performance against the established objectives and measures.
What are the advantages of the permanent magnet ferrite we produce?
1,Stable magnetic properties: permanent magnet ferrite has high coercivity and remanence, stable magnetic properties, and is not easily affected by external influences.
2,High temperature resistance: permanent magnet ferrite has good high temperature resistance and is suitable for use in high temperature environment.
3,High temperature coefficient of resistance to saturated magnetic field: The magnetic properties of permanent magnet ferrite decay slowly at high temperatures, with a high temperature coefficient of resistance to saturated magnetic field.
4,Low cost: The raw material price of permanent magnet ferrite is low, the production process is simple, and the cost is relatively low.
5,Long service life: permanent magnet ferrite has a long service life, is not easy to demagnetize, low maintenance costs.
6,Good rare earth substitution: permanent magnet ferrite can replace some rare earth magnets, reduce the dependence on rare earth and reduce the consumption of rare earth resources.
PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS
| Units | Sintered Ferrite (Ceramic) | |
| Curie Temperature | ºC | 450 |
| Maximum Operating Temperature | ºC | 350 |
| Hardness | Hv | >530 |
| Density | g/cm3 | 4.8 – 5.0 |
| Relative recoil permeability | μrec | 1.05-1.1 |
| Temperature Coefficient Br | %/ºC | -0.18 |
| Temperature Coefficient iHc | %/ºC | 0.11-0.40 |
| Anti-Bending Strength | N/m2 | (0.5-0.9)×108 |
| Anti-Compressive Strength | N/m2 | ≥6.9×108 |
| Anti-Tensile Strength | N/m2 | (0.2-0.5)×108 |
| Specific Heat | J/kg·K | 600-900 |
| Resistivity | Q.cm | >104 |
What's the application of Xinheng's permanent ferrite magnets?
Xinheng mainly manufactures the following types of ceramic arc segment magnets:
FERRITE POWDER GRADE OF MOTORCYCLE MOTORS MAGNET
|
|
Br(mT) | Hcb(KA/m) | Hcj(KA/m) | (BH)max(KJ/m3) | ||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
| Y33 | 410-430 | 4100-4300 | 220-250 | 2760-3140 | 225-255 | 2830-3200 | 31.5-35.0 | 3.9-4.4 |
| Y33H | 410-430 | 4100-4300 | 250-270 | 3140-3390 | 250-275 | 3140-3450 | 31.5-35.0 | 3.9-4.4 |
| Y33H-2 | 410-430 | 4100-4300 | 285-315 | 3580-3960 | 305-335 | 3830-4200 | 31.8-35.0 | 4.0-4.4 |
| Y34 | 420-440 | 4200-4400 | 200-230 | 2510-2890 | 205-235 | 2570-2950 | 32.5-36.0 | 4.1-4.4 |
| Y35 | 430-450 | 4300-4500 | 215-239 | 2700-3000 | 217-241 | 2730-3030 | 33.1-38.2 | 4.1-4.8 |
| Y36 | 430-450 | 4300-4500 | 247-271 | 3100-3400 | 250-274 | 3140-3440 | 35.1-38.3 | 4.1-4.8 |
| Y38 | 440-460 | 4400-4600 | 285-305 | 3580-3830 | 294-310 | 3690-3890 | 36.6-40.6 | 4.6-4.8 |
| Y40 | 440-460 | 4400-4600 | 330-354 | 4150-4450 | 340-360 | 4270-4520 | 37.6-41.8 | 4.7-5.2 |
