Product Details
Place of Origin: Sichuan, China
Brand Name: XINHENG
Certification: IATF16949,ISO9001
Model Number: W3050E
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ton per year
Product Name: |
Permanent Magnet Ferrite |
Application: |
Inverter Motor |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R87.3mm-r78.5mm)×24mm |
Processing: |
Wet Pressed |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
840pcs |
Product Name: |
Permanent Magnet Ferrite |
Application: |
Inverter Motor |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R87.3mm-r78.5mm)×24mm |
Processing: |
Wet Pressed |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
840pcs |

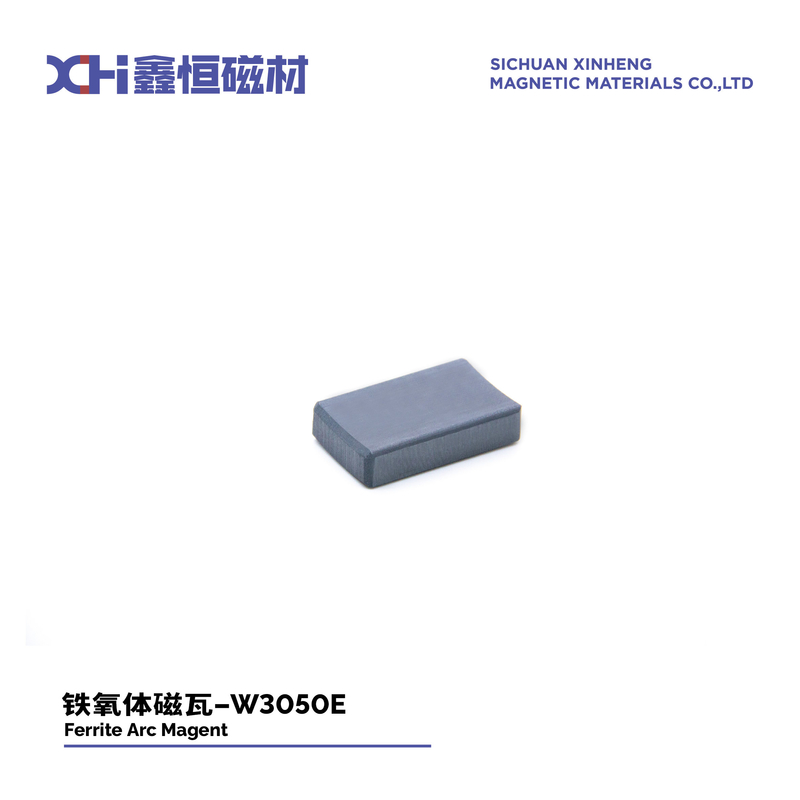

High Pressure Pressing Of Permanent Magnet Ferrite For Inverter Motors W3050E
What does Xinheng offer to customers?
Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.
What's the key advantages of ceramic strontium ferrite magnets made by wet compression molding?
Low cost - Strontium ferrite is inexpensive and the wet molding process is relatively simple. This makes them cheaper than rare-earth magnets.
High magnetic property-Even without heavy rare earth element additions, strontium ferrite magnets can achieve coercivities of 700-1000 kA/m, making them suitable for many applications
Resistance to corrosion - Being fully dense ceramic materials, they are not prone to corrosion like bonded magnets containing additives.
Mass production capability - The molding process is amenable to automated high-volume manufacturing of complex magnet geometries.
PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS
| Units | Sintered Ferrite (Ceramic) | |
| Curie Temperature | ºC | 450 |
| Maximum Operating Temperature | ºC | 350 |
| Hardness | Hv | >530 |
| Density | g/cm3 | 4.8 – 5.0 |
| Relative recoil permeability | μrec | 1.05-1.1 |
| Temperature Coefficient Br | %/ºC | -0.18 |
| Temperature Coefficient iHc | %/ºC | 0.11-0.40 |
| Anti-Bending Strength | N/m2 | (0.5-0.9)×108 |
| Anti-Compressive Strength | N/m2 | ≥6.9×108 |
| Anti-Tensile Strength | N/m2 | (0.2-0.5)×108 |
| Specific Heat | J/kg·K | 600-900 |
| Resistivity | Q.cm | >104 |
What's the application of Xinheng's permanent ferrite magnets?
Xinheng mainly manufactures the following types of ceramic arc segment magnets:
How Xinheng fabricates its permanent strontium ferrite magnet?
FERRITE POWDER GRADE OF INVERTER MOTORS MAGNET
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Introduction Of Inverter Motor:
High efficiency and energy saving: Variable frequency motor can adjust the running speed according to the load demand, avoiding unnecessary energy waste, thus achieving energy saving effect.
Safe and reliable: the running speed of the inverter motor can be adjusted at any time according to needs, so that it can maintain stable operation under different loads and working conditions.
Precise regulation: The frequency and voltage of the motor are controlled by the frequency converter to achieve accurate control of the motor and adapt to the needs of different production processes. 4. Extend the mechanical life: Because the variable frequency motor does not have an impact during the start and stop process, it can extend the service life of the mechanical equipment.
