Home > products > Permanent Ferrite Magnet > ISO9001 Certification Ferrite Permanent Magnet For Ceiling Fan Motor W1071

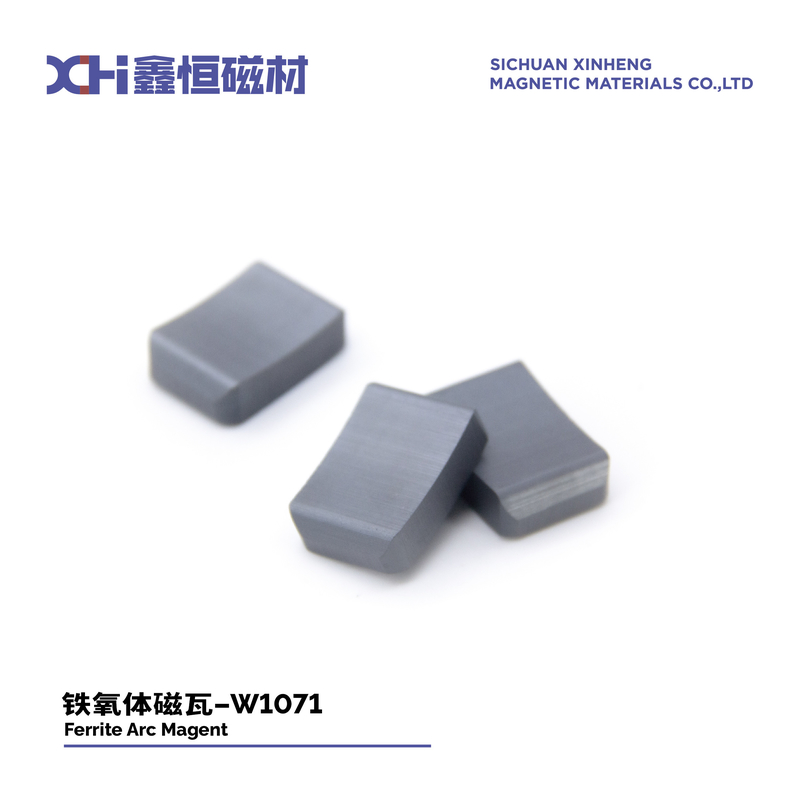

ISO9001 Certification Ferrite Permanent Magnet For Ceiling Fan Motor W1071

Product Details

Place of Origin: Sichuan, China

Brand Name: XINHENG

Certification: IATF16949,ISO9001

Model Number: W1071

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Negotiation

Packaging Details: Carton+pallet

Delivery Time: 10-15days

Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000 ton per year

Get Best Price
High Light:

Sintered Ferrite Block Magnets

,

Y20 Ferrite Block Magnets

,

Y20 Ceramic Block Magnets

Product Name:
Ferrite Motor Magnets
Shape:
Arc,Tile
Type:
Anisotropic Sintered Magnet
Composite:
Ferrite Strontium Powder
Size:
(R75.00mm-r67.00mm)×29.00mm
Processing:
Wet Molding
Coating:
No Coating
Package Size:
340mm×255mm×75mm
Quantity Per Carton:
840pcs
Application:
Fan Motor
Product Name:
Ferrite Motor Magnets
Shape:
Arc,Tile
Type:
Anisotropic Sintered Magnet
Composite:
Ferrite Strontium Powder
Size:
(R75.00mm-r67.00mm)×29.00mm
Processing:
Wet Molding
Coating:
No Coating
Package Size:
340mm×255mm×75mm
Quantity Per Carton:
840pcs
Application:
Fan Motor
ISO9001 Certification Ferrite Permanent Magnet For Ceiling Fan Motor W1071

Ferrite Permanent Magnet for Ceiling Fan Motor W1071 ISO9001 Certification







What does Xinheng offer to customers?

Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.



What's the feature of ceramic strontium ferrite magnet made by wet compression molding?

  • Composition - Contain strontium ferrite (SrFe12O19) as the primary magnetic material. Strontium ferrite has good magnetic properties and is inexpensive to produce.

  • Density - Have a high relative density of around 95% or more after sintering. This gives good mechanical strength.

  • An-isotropy - Exhibit strong magnetocrystalline an-isotropy due to their hexagonal crystal structure. This results in a preferred direction of magnetization along one axis.

  • Particle shape - The strontium ferrite powder used typically has a hexagonal platelet morphology which helps promote magnetic an-isotropy during molding and sintering.

  • Molding method - The powder is mixed with a liquid binder and compression molded into a dense green compact using high pressures. This orients the an-isotropic particles.

  • Firing process - The compact is then sintered at high temperature to develop density while preserving the induced magnetic anisotropy orientation from molding.

  • Remanence - Have a maximum magnetic flux density or remanence along the axis of anisotropy, but little/no remanence perpendicular to it.

  • Coercivity - Usually have medium to high coercivity depending on additives, density, and anisotropy level achieved.





What's the key advantages of ceramic strontium ferrite magnets made by wet compression molding?

  • Low cost - Strontium ferrite is inexpensive and the wet molding process is relatively simple. This makes them cheaper than rare-earth magnets.

  • High magnetic property-Even without heavy rare earth element additions, strontium ferrite magnets can achieve coercivities of 700-1000 kA/m, making them suitable for many applications.

  • Dimensional consistency - The compression molding process allows for close dimensional tolerances and uniform magnet shapes to be produced consistently.

  • Temperature stability - Strontium ferrite magnets have high Curie temperatures, typically around 450-470°C. They maintain good magnetic properties over a wide operating temperature range.

  • Resistance to corrosion - Being fully dense ceramic materials, they are not prone to corrosion like bonded magnets containing additives.

  • Mass production capability - The molding process is amenable to automated high-volume manufacturing of complex magnet geometries.​​



        PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS

  Units Sintered Ferrite (Ceramic)
    Curie Temperature
ºC 450
    Maximum Operating Temperature ºC 350
    Hardness Hv >530
    Density g/cm3 4.8 – 5.0
    Relative recoil permeability μrec 1.05-1.1
    Temperature Coefficient Br %/ºC -0.18
    Temperature Coefficient iHc %/ºC 0.11-0.40
    Anti-Bending Strength N/m2 (0.5-0.9)×108
    Anti-Compressive Strength N/m2

≥6.9×108

    Anti-Tensile Strength N/m2 (0.2-0.5)×108
    Specific Heat J/kg·K 600-900
    Resistivity Q.cm >104



ISO9001 Certification Ferrite Permanent Magnet For Ceiling Fan Motor W1071 0

What's the application of Xinheng's permanent ferrite magnets?



Xinheng mainly manufactures the following types of ceramic arc segment magnets:

  • Automotive motor magnet including automobile starter motor magnet, automobile wiper motor magnet, automobile rolling window motor magnet, automobile heating and cooling fan motor magnet, automobile seat motor magnet, automobile sunroof motor magnet, automobile powsteering motor magnet, automobile tailgate motor magnet, automobile oil pump motor magnet, automobile ABS anti-lock motor magnet, etc.
  • Inverter home appliance magnet including inverter washing machine motor magnet, inverter refrigerator motor magnet, inverter air-conditioner motor magnet,etc.
  • Fan motor magnet including ceiling fan motor magnet, floor fan magnet, etc.
  • Motorcycle motor magnet including motorcycle starter motor magnet, motorcycle flywheel magneto magnet, etc.
  • Electrical tool motor magnet including cutting machine motor magnet, electric sawing machine motor magnet, lawn mower motor magnet, gasoline generator magnet, etc.
  • Actuator motor magnet including medical bed actuator motor magnet, TV lifting bracket actuator motor magnet, desk lifting actuator motor magnet, smart home appliance actuator motor magnet, etc.

How Xinheng fabricates its permanent strontium ferrite magnet?

ISO9001 Certification Ferrite Permanent Magnet For Ceiling Fan Motor W1071 1

ISO9001 Certification Ferrite Permanent Magnet For Ceiling Fan Motor W1071 2



           FERRITE POWDER GRADE OF FAN ROTOR MAGNET

Grade

Br(mT)

Hcb(KA/m)

Hcj(KA/m)

(BH)max(KJ/m3)

mT

Gs

KA/m

Oe

KA/m

Oe

KJ/m3

MGOe

Y30H-1

380-400

3800-4000

230-275

2890-3460

235-290

2950-3640

27.0-32.5

3.4-4.1

Y33

410-430

4100-4300

220-250

2760-3140

225-255

2830-3200

31.5-35.0

3.9-4.4

Y33H

410-430

4100-4300

250-270

3140-3390

250-275

3140-3450

31.5-35.0

3.9-4.4

Y33H-2

410-430

4100-4300

285-315

3580-3960

305-335

3830-4200

31.8-35.0

4.0-4.4

Y35

430-450

4300-4500

215-239

2700-3000

217-241

2730-3030

33.1-38.2

4.1-4.8

Y38

440-460

4400-4600

285-305

3580-3830

294-310

3690-3890

36.6-40.6

4.6-4.8

Y40

440-460

4400-4600

330-354

4150-4450

340-360

4270-4520

37.6-41.8

4.7-5.2



                  FAN ROTOR MAGNET SPECIFICATION TABLE





Model

R

r

W

L

H

Grade

Application

W071 75 67.0 28.9 20.0 8.0 Y30H-1 Ceiling fan
W071A 75 67.0 28.9 20.0 8.0 Y33 Ceiling fan
W077 87.5 79.5 65.8 19.5 7.9 Y30H-1 Ceiling fan
W089 76.2 76.2 44.0 25.0 10.0 Y30H-1 Ceiling fan
W101 87.5 79.5 37.0 19.5 8.0 Y30H-1 Ceiling fan
W102 56.75 48.25 38.0 25.0 8.5 Y30H-1 Ceiling fan
W112 87.5 79.5 35.0 20.0 8.0 Y30H-1 Ceiling fan
W130 87.5 79.5 30.5 20.0 8.0 Y30H-1 Ceiling fan
W3130B 87.5 79.5 30.5 20.0 8.0 Y33 Ceiling fan
W115 29.5 21.5 14.5 38.0 8.6 Y33H-2 Floor fan
W4187 17.05 25.4 21.26 34.0 5.9 Y33H-2 Floor fan



To know more about Xinheng Ferrite Permanent Magnet
