Product Details
Place of Origin: Sichuan, China
Brand Name: XINHENG
Certification: IATF16949,ISO9001
Model Number: W026
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Carton+pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ton per year
Product Name: |
Household Appliances Ferrite Magnets |
Voltage: |
Inverter Motor |
Capacity: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R28.9mm-r21.1mm)×28.50mm |
Processing: |
Wet Molding |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
372pcs |
Product Name: |
Household Appliances Ferrite Magnets |
Voltage: |
Inverter Motor |
Capacity: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R28.9mm-r21.1mm)×28.50mm |
Processing: |
Wet Molding |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
372pcs |

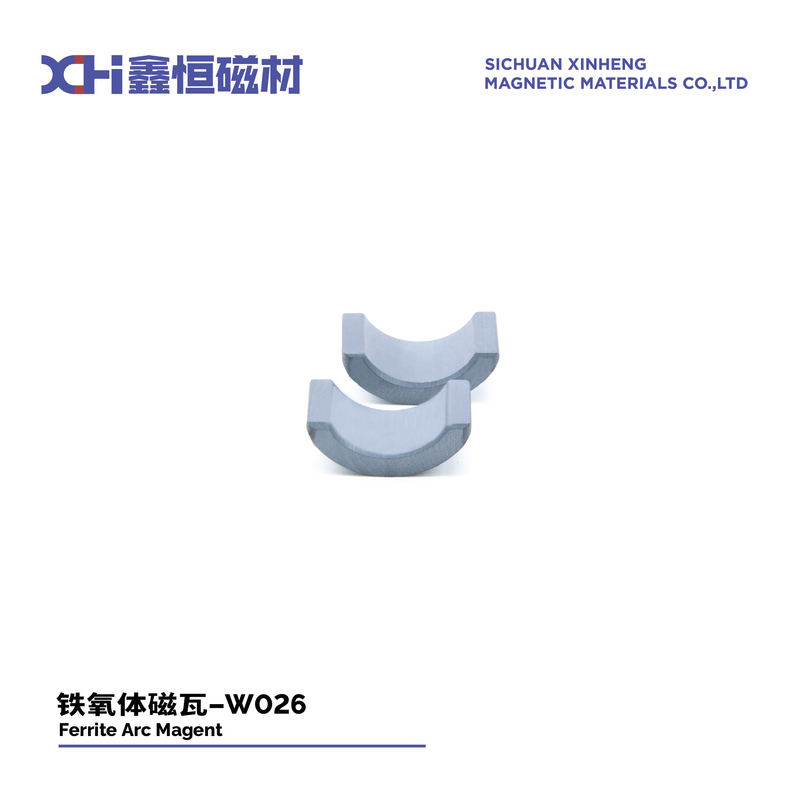

Widely Used In Household Electric Motor Ferrite Magnetic Tile W026
Introduction Of Inverter Motor:
An inverter motor, also known as a variable frequency drive (VFD) motor, operates based on the principles of variable frequency control and motor speed regulation. It is commonly used in various applications where precise speed control and energy efficiency are required.
Variable Frequency Control: An inverter motor operates by adjusting the frequency of the electrical power supplied to the motor. Unlike traditional motors that operate at a fixed frequency, inverter motors allow for flexible and adjustable frequency control. By varying the frequency, the motor's rotational speed can be precisely regulated
What's the feature of ceramic strontium ferrite magnet made by wet compression molding?
Composition - Contain strontium ferrite (SrFe12O19) as the primary magnetic material. Strontium ferrite has good magnetic properties and is inexpensive to produce.
Density - Have a high relative density of around 95% or more after sintering. This gives good mechanical strength.
An-isotropy - Exhibit strong magnetocrystalline an-isotropy due to their hexagonal crystal structure. This results in a preferred direction of magnetization along one axis.
Particle shape - The strontium ferrite powder used typically has a hexagonal platelet morphology which helps promote magnetic an-isotropy during molding and sintering.
Molding method - The powder is mixed with a liquid binder and compression molded into a dense green compact using high pressures. This orients the an-isotropic particles
PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS
Units | Sintered Ferrite (Ceramic) | |
Curie Temperature | ºC | 450 |
Maximum Operating Temperature | ºC | 350 |
Hardness | Hv | >530 |
Density | g/cm3 | 4.8 – 5.0 |
Relative recoil permeability | μrec | 1.05-1.1 |
Temperature Coefficient Br | %/ºC | -0.18 |
Temperature Coefficient iHc | %/ºC | 0.11-0.40 |
Anti-Bending Strength | N/m2 | (0.5-0.9)×108 |
Anti-Compressive Strength | N/m2 | ≥6.9×108 |
Anti-Tensile Strength | N/m2 | (0.2-0.5)×108 |
Specific Heat | J/kg·K | 600-900 |
Resistivity | Q.cm | >104 |
What's the application of Xinheng's permanent ferrite magnets?
Xinheng mainly manufactures the following types of ceramic arc segment magnets:
How Xinheng fabricates its permanent strontium ferrite magnet?
FERRITE POWDER GRADE OF INVERTER MOTORS MAGNET
|
INVERTER MOTORS MAGNET SPECIFICATION TABLE
|
To know more about Xinheng Magnets
