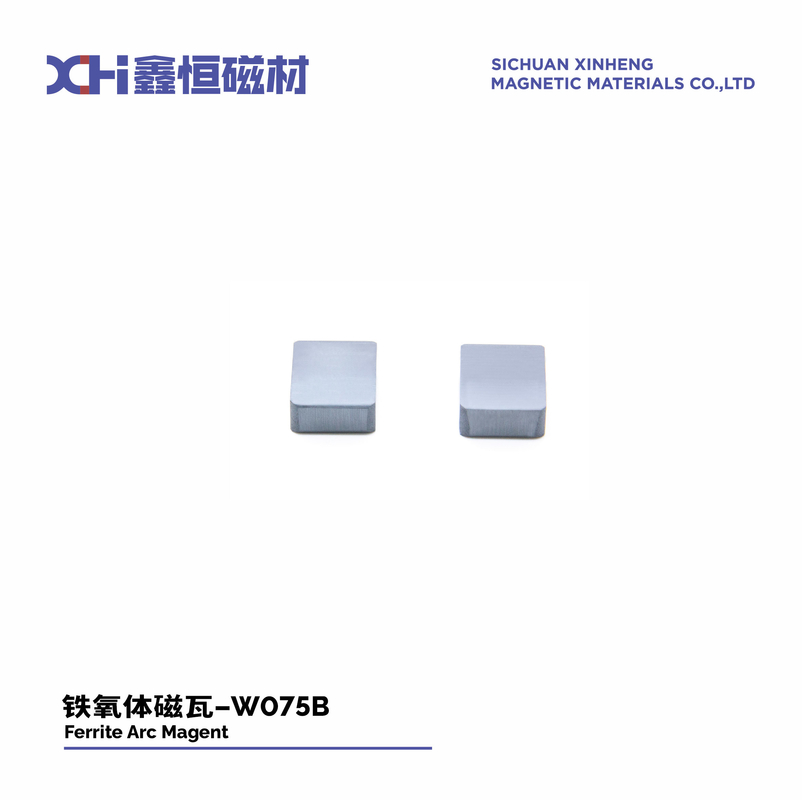

Hard Permanent Magnet Ferrite In Motorcycle Starting Motors W075B

A Hard Permanent Magnet Ferrite Used In Motorcycle Starting Motors W075B

What's the feature of ceramic strontium ferrite magnet made by wet compression molding?

• Composition - Contain strontium ferrite (SrFe12O19) as the primary magnetic material. Strontium ferrite has good magnetic properties and is inexpensive to produce.

• Density - Have a high relative density of around 95% or more after sintering. This gives good mechanical strength.

• An-isotropy - Exhibit strong magnetocrystalline an-isotropy due to their hexagonal crystal structure. This results in a preferred direction of magnetization along one axis.

• Particle shape - The strontium ferrite powder used typically has a hexagonal platelet morphology which helps promote magnetic an-isotropy during molding and sintering.

• Molding method - The powder is mixed with a liquid binder and compression molded into a dense green compact using high pressures. This orients the an-isotropic particles.

• Firing process - The compact is then sintered at high temperature to develop density while preserving the induced magnetic anisotropy orientation from molding.

• Coercivity - Usually have medium to high coercivity depending on additives, density, and anisotropy level achieved.

PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS

What's the application of Xinheng's permanent ferrite magnets?

Xinheng mainly manufactures the following types of ceramic arc segment magnets:

• Automotive motor magnet including automobile starter motor magnet, automobile wiper motor magnet, automobile rolling window motor magnet, automobile heating and cooling fan motor magnet, automobile seat motor magnet, automobile sunroof motor magnet, automobile powsteering motor magnet, automobile tailgate motor magnet, automobile oil pump motor magnet, automobile ABS anti-lock motor magnet, etc.
• Inverter home appliance magnet including inverter washing machine motor magnet, inverter refrigerator motor magnet, inverter air-conditioner motor magnet,etc.
• Fan motor magnet including ceiling fan motor magnet, floor fan magnet, etc.
• Motorcycle motor magnet including motorcycle starter motor magnet, motorcycle flywheel magneto magnet, etc.
• Electrical tool motor magnet including cutting machine motor magnet, electric sawing machine motor magnet, lawn mower motor magnet, gasoline generator magnet, etc.
• Actuator motor magnet including medical bed actuator motor magnet, TV lifting bracket actuator motor magnet, desk lifting actuator motor magnet, smart home appliance actuator motor magnet, etc.

How Xinheng fabricates its permanent strontium ferrite magnet?

FERRITE POWDER GRADE OF MOTORCYCLE MOTORS MAGNET

MOTORCYCLE MOTORS MAGNET SPECIFICATION TABLE

Introduction Of Motercycle Motor:

Safety Features: Starter motors are designed with safety features to prevent damage due to prolonged engagement. These include an overrunning clutch mechanism that allows the pinion gear to disengage from the flywheel once the engine starts. This prevents the starter motor from over-speeding and potential damage.

Durability and Reliability: Automobile starting motors are designed to withstand the demanding conditions of engine cranking. They are built to be robust, durable, and resistant to heat, vibration, and contaminants present in the engine compartment.

To know more about Xinheng Magnets
