Product Details
Place of Origin: Sichuan, China
Brand Name: XINHENG
Certification: IATF16949,ISO9001

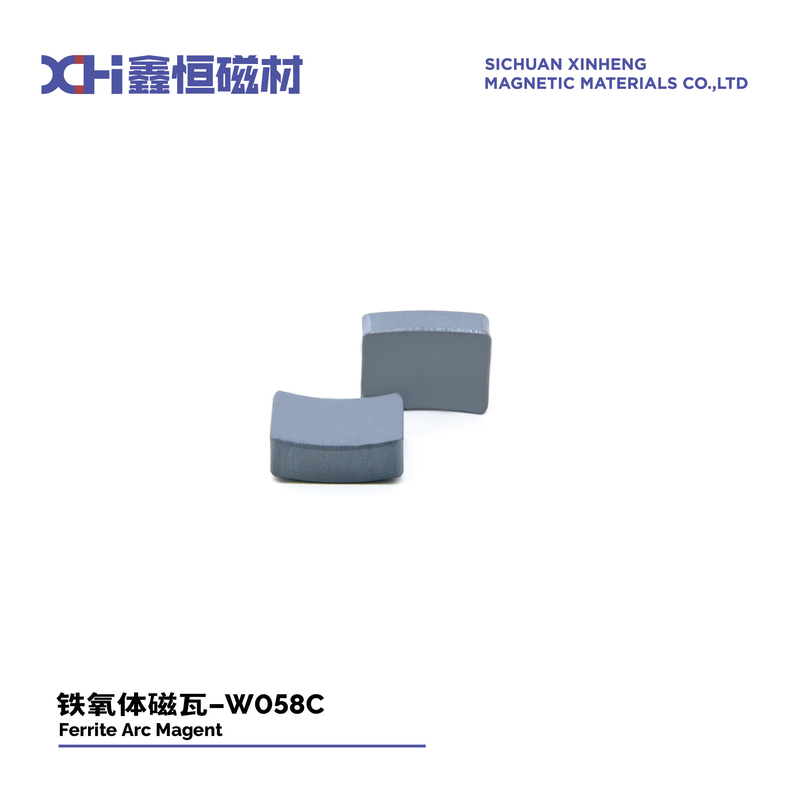

Model Number: W058C
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ton per year
Product Name: |
Permanent Magnet Ferrite |
Application: |
Various Variable Frequency Motors |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R58.0mm-50.5rmm)*25.0mm |
Processing: |
Wet Pressing |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
840pcs |
Product Name: |
Permanent Magnet Ferrite |
Application: |
Various Variable Frequency Motors |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R58.0mm-50.5rmm)*25.0mm |
Processing: |
Wet Pressing |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
840pcs |
Automatic Press Forming Of Permanent Magnet Ferrite Magnetic Tile For Inverter Motor W088C
Introduction of variable frequency motor:
Variable frequency motor is a kind of motor that can adjust the speed and output power according to the demand. By controlling the frequency and voltage of the input power supply, the motor speed can be adjusted and accurately controlled. The variable frequency motor uses the electronic frequency converter to convert the fixed frequency alternating current into the adjustable frequency and voltage alternating current, so as to achieve the precise adjustment of the motor speed.
Variable frequency motor has the characteristics of high efficiency and energy saving, precise control, smooth start, low noise, flexible and adjustable, so it has been widely used in industrial production and other occasions. Common application scenarios include fans, pumps, compressors, conveyors, and other equipment and systems that require adjustable speed and precise control.
Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.
What is permanent magnet ferrite?
Permanent magnet ferrite is a hexagon structure compound with uniaxial anisotropy, mainly barium, strontium, lead three kinds of ferrite and their composite solid solution, there are the same magnetic and opposite magnetic points, because this kind of ferrite material in the external magnetization field disappeared, still can retain a strong constant remanent magnetic property for a long time, can be used to generate a stable magnetic field on the external space.
How to determine the performance of the product?
There are four main indicators to measure the performance of permanent magnet materials: residual magnetism, coercive force, intrinsic coercive force, and maximum magnetic energy product,The finished permanent magnet ferrite has a high coercivity and is not easy to demagnetize after magnetization.
What are the advantages of the permanent magnet ferrite we produce?
1,Stable magnetic properties: permanent magnet ferrite has high coercivity and remanence, stable magnetic properties, and is not easily affected by external influences.
2,High temperature resistance: permanent magnet ferrite has good high temperature resistance and is suitable for use in high temperature environment.
3,High temperature coefficient of resistance to saturated magnetic field: The magnetic properties of permanent magnet ferrite decay slowly at high temperatures, with a high temperature coefficient of resistance to saturated magnetic field.
4,Low cost: The raw material price of permanent magnet ferrite is low, the production process is simple, and the cost is relatively low.
5,Long service life: permanent magnet ferrite has a long service life, is not easy to demagnetize, low maintenance costs.
6,Good rare earth substitution: permanent magnet ferrite can replace some rare earth magnets, reduce the dependence on rare earth and reduce the consumption of rare earth resources.
PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS
| Units | Sintered Ferrite (Ceramic) | |
| Curie Temperature | ºC | 450 |
| Maximum Operating Temperature | ºC | 350 |
| Hardness | Hv | >530 |
| Density | g/cm3 | 4.8 – 5.0 |
| Relative recoil permeability | μrec | 1.05-1.1 |
| Temperature Coefficient Br | %/ºC | -0.18 |
| Temperature Coefficient iHc | %/ºC | 0.11-0.40 |
| Anti-Bending Strength | N/m2 | (0.5-0.9)×108 |
| Anti-Compressive Strength | N/m2 | ≥6.9×108 |
| Anti-Tensile Strength | N/m2 | (0.2-0.5)×108 |
| Specific Heat | J/kg·K | 600-900 |
| Resistivity | Q.cm | >104 |
What's the application of Xinheng's permanent ferrite magnets?
Xinheng mainly manufactures the following types of ceramic arc segment magnets:
FERRITE POWDER GRADE OF MOTORCYCLE MOTORS MAGNET
|
|
Br(mT) | Hcb(KA/m) | Hcj(KA/m) | (BH)max(KJ/m3) | ||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
| Y33 | 410-430 | 4100-4300 | 220-250 | 2760-3140 | 225-255 | 2830-3200 | 31.5-35.0 | 3.9-4.4 |
| Y33H | 410-430 | 4100-4300 | 250-270 | 3140-3390 | 250-275 | 3140-3450 | 31.5-35.0 | 3.9-4.4 |
| Y33H-2 | 410-430 | 4100-4300 | 285-315 | 3580-3960 | 305-335 | 3830-4200 | 31.8-35.0 | 4.0-4.4 |
| Y34 | 420-440 | 4200-4400 | 200-230 | 2510-2890 | 205-235 | 2570-2950 | 32.5-36.0 | 4.1-4.4 |
| Y35 | 430-450 | 4300-4500 | 215-239 | 2700-3000 | 217-241 | 2730-3030 | 33.1-38.2 | 4.1-4.8 |
| Y36 | 430-450 | 4300-4500 | 247-271 | 3100-3400 | 250-274 | 3140-3440 | 35.1-38.3 | 4.1-4.8 |
| Y38 | 440-460 | 4400-4600 | 285-305 | 3580-3830 | 294-310 | 3690-3890 | 36.6-40.6 | 4.6-4.8 |
| Y40 | 440-460 | 4400-4600 | 330-354 | 4150-4450 | 340-360 | 4270-4520 | 37.6-41.8 | 4.7-5.2 |
