Home > products > Permanent Ferrite Magnet > Permanent Magnet Ferrite For Small Components In Household Generators

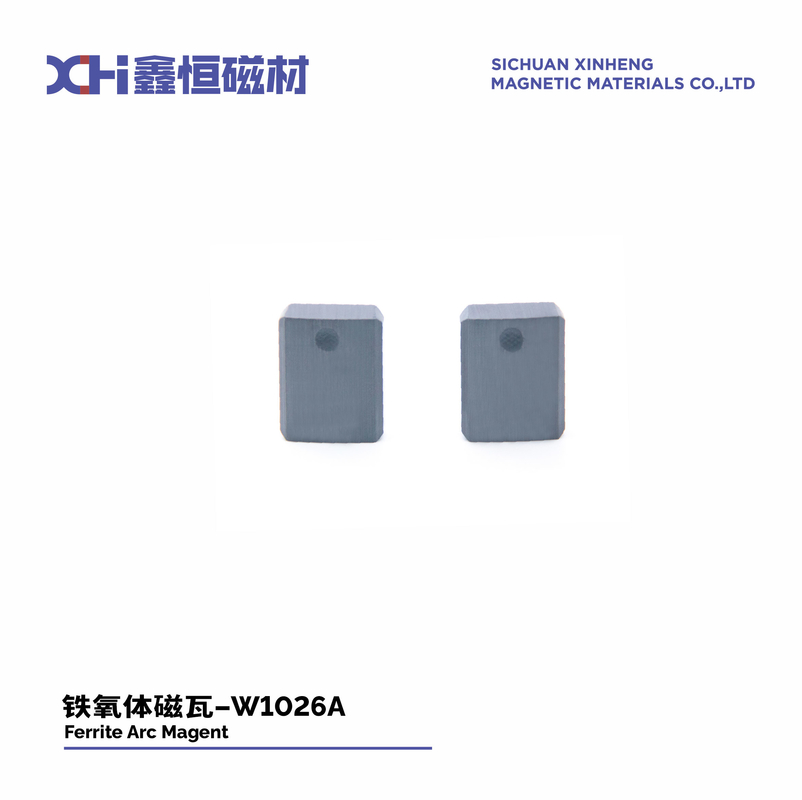

Permanent Magnet Ferrite For Small Components In Household Generators

Product Details

Place of Origin: Sichuan, China

Brand Name: XINHENG

Certification: IATF16949,ISO9001

Model Number: W1026A

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Negotiation

Packaging Details: Carton+pallet

Delivery Time: 10-15days

Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000 ton per year

Get Best Price
Highlight:

Small Components Permanent Magnet Ferrite

,

Household Generators Permanent Magnet Ferrite

,

Small Components Ferrite Magnet

Product Name:
Ferrite Motor Magnets
Application:
Universal Motor
Shape:
Arc,Tile
Type:
Anisotropic Sintered Magnet
Composite:
Ferrite Strontium Powder
Size:
(R64.10mm-r45.5mm)×28.86mm
Processing:
Wet Pressed
Quantity Per Carton:
598pcs
Coating:
No Coating
Certification:
IATF16949,ISO9001
Product Name:
Ferrite Motor Magnets
Application:
Universal Motor
Shape:
Arc,Tile
Type:
Anisotropic Sintered Magnet
Composite:
Ferrite Strontium Powder
Size:
(R64.10mm-r45.5mm)×28.86mm
Processing:
Wet Pressed
Quantity Per Carton:
598pcs
Coating:
No Coating
Certification:
IATF16949,ISO9001
Permanent Magnet Ferrite For Small Components In Household Generators

Permanent Magnet Ferrite For Small Components In Household Generators​





The intorduce of household generators:



A home generator is a small generator commonly used in homes, small businesses, or camping grounds. They usually run on oil or natural gas, and sometimes on renewable energy sources such as solar or wind power. Home generators can provide emergency power in the event of a power outage, as well as electrical support for outdoor activities or camping. They are usually installed outdoors and are equipped with sockets for access to appliances or equipment. Some household generators also have intelligent control systems that enable remote monitoring and management. In general, the home generator is a very convenient and practical home backup power equipment.



What's the feature of ceramic strontium ferrite magnet made by wet compression molding?

  • Composition - Contain strontium ferrite (SrFe12O19) as the primary magnetic material. Strontium ferrite has good magnetic properties and is inexpensive to produce.

  • Density - Have a high relative density of around 95% or more after sintering. This gives good mechanical strength.

  • An-isotropy - Exhibit strong magnetocrystalline an-isotropy due to their hexagonal crystal structure. This results in a preferred direction of magnetization along one axis.

  • Particle shape - The strontium ferrite powder used typically has a hexagonal platelet morphology which helps promote magnetic an-isotropy during molding and sintering.

  • Molding method - The powder is mixed with a liquid binder and compression molded into a dense green compact using high pressures. This orients the an-isotropic particles.

  • Firing process - The compact is then sintered at high temperature to develop density while preserving the induced magnetic anisotropy orientation from molding.

  • Remanence - Have a maximum magnetic flux density or remanence along the axis of anisotropy, but little/no remanence perpendicular to it.

  • Coercivity - Usually have medium to high coercivity depending on additives, density, and anisotropy level achieved.





What's the key advantages of ceramic strontium ferrite magnets made by wet compression molding?

  • Low cost - Strontium ferrite is inexpensive and the wet molding process is relatively simple. This makes them cheaper than rare-earth magnets.

  • High magnetic property-Even without heavy rare earth element additions, strontium ferrite magnets can achieve coercivities of 700-1000 kA/m, making them suitable for many applications.

  • Dimensional consistency - The compression molding process allows for close dimensional tolerances and uniform magnet shapes to be produced consistently.

  • Temperature stability - Strontium ferrite magnets have high Curie temperatures, typically around 450-470°C. They maintain good magnetic properties over a wide operating temperature range.

  • Resistance to corrosion - Being fully dense ceramic materials, they are not prone to corrosion like bonded magnets containing additives.

  • Mass production capability - The molding process is amenable to automated high-volume manufacturing of complex magnet geometries.​​





What's the application of Xinheng's permanent ferrite magnets?



Xinheng mainly manufactures the following types of ceramic arc segment magnets:

  • Automotive motor magnet including automobile starter motor magnet, automobile wiper motor magnet, automobile rolling window motor magnet, automobile heating and cooling fan motor magnet, automobile seat motor magnet, automobile sunroof motor magnet, automobile powsteering motor magnet, automobile tailgate motor magnet, automobile oil pump motor magnet, automobile ABS anti-lock motor magnet, etc.
  • Inverter home appliance magnet including inverter washing machine motor magnet, inverter refrigerator motor magnet, inverter air-conditioner motor magnet,etc.
  • Fan motor magnet including ceiling fan motor magnet, floor fan magnet, etc.
  • Motorcycle motor magnet including motorcycle starter motor magnet, motorcycle flywheel magneto magnet, etc.
  • Electrical tool motor magnet including cutting machine motor magnet, electric sawing machine motor magnet, lawn mower motor magnet, gasoline generator magnet, etc.
  • Actuator motor magnet including medical bed actuator motor magnet, TV lifting bracket actuator motor magnet, desk lifting actuator motor magnet, smart home appliance actuator motor magnet, etc.

How Xinheng fabricates its permanent strontium ferrite magnet?

Permanent Magnet Ferrite For Small Components In Household Generators 0

Permanent Magnet Ferrite For Small Components In Household Generators 1



FERRITE POWDER GRADE OF UNIVERSAL MOTORS MAGNET

Grade Br(mT) Hcb(KA/m) Hcj(KA/m) (BH)max(KJ/m3)
mT Gs KA/m Oe KA/m Oe KJ/m3 MGOe
Y30H-1 380-400 3800-4000 230-275 2890-3460 235-290 2950-3640 27.0-32.5 3.4-4.1
Y33 410-430 4100-4300 220-250 2760-3140 225-255 2830-3200 31.5-35.0 3.9-4.4
Y33H 410-430 4100-4300 250-270 3140-3390 250-275 3140-3450 31.5-35.0 3.9-4.4
Y35 430-450 4300-4500 215-239 2700-3000 217-241 2730-3030 33.1-38.2 4.1-4.8



UNIVERSAL MOTORS MAGNET SPECIFICATION TABLE

No. Item R r W L h Grade Application
1 W001C 82.5 74.3 40.0 22.0 8.2 Y30H-1 168F external magnet
2 W002 68.0 60.0 40.3 22.0 8.0 Y30H-1 152F external magnet
3 W003 97.5 89.5 40.0 22.3 8.0 Y30H-1 182F external magnet
4 W004 73.5 65.5 60.9 27.8 8.0 Y33 168 internal magnet
5 W015 86.5 75.5 55.0 28.0 11.0 Y30H-1 2V77 internal magnet
6 W040 78.0 70.0 70.0 18.0 8.0 Y33 2P76 internal magnet
7 W057 74.0 61.5 34.0 28.0 12.5 Y30H-1 307-4 internal magnet
8 W058 74.0 61.5 38.0 28.0 12.5 Y30H-1 190-5 internal magnet
9 W060 75.7 63.2 70.0 28.0 12.5 Y30H-1 1P90 internal magnet
10 W1182 86.0 73.0 52.0 30.0 13.0 Y30H-1 120211 internal magnet
11 W1184 73.5 62.5 61.0 25.0 11.0 Y33 168 internal magnet







To know more about Xinheng Permanent ​ Ferrite Magnet
