Product Details
Place of Origin: Sichuan, China
Brand Name: XINHENG
Certification: IATF16949,ISO9001
Model Number: W050A
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ton per year
Product Name: |
Permanent Magnet Ferrite |
Application: |
Oxygen Pumps In Fish Tanks |
Shape: |
Arc |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R17.0mm-18.8rmm)*24.0mm |
Processing: |
Wet Pressing |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
1040pcs |
Product Name: |
Permanent Magnet Ferrite |
Application: |
Oxygen Pumps In Fish Tanks |
Shape: |
Arc |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R17.0mm-18.8rmm)*24.0mm |
Processing: |
Wet Pressing |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
1040pcs |

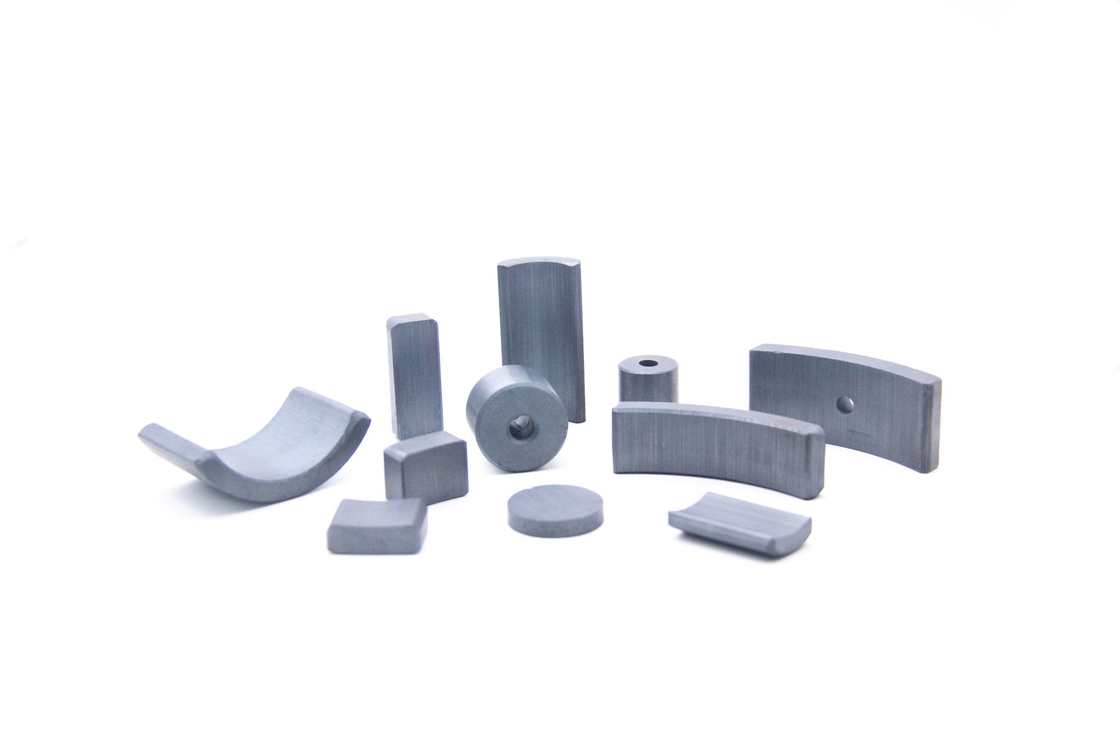

Automatic Grinding Processing Of Permanent Magnet Ferrite Magnetic Tile For Inverter Motor W050A
The role of permanent magnet ferrite in oxygen pump :
Provide permanent magnet field: Permanent magnet ferrites are able to produce a stable magnetic field, which is very important in many types of oxygen pumps. It can help drive the impeller of the pump or push the flow of the gas, thereby improving the dissolution efficiency of the gas and enhancing the oxygen content of the water.
Improve efficiency: The use of permanent magnet materials can make the energy conversion efficiency of the oxygen pump higher, thereby reducing energy consumption. Compared with traditional electromagnets, permanent magnet ferrite has a better power density and can effectively convert electrical energy into mechanical energy.
Reduce maintenance: permanent magnet ferrite has no moving part, which is more durable than traditional electromagnetic equipment and has low maintenance costs. Their use can extend the service life of equipment and reduce downtime.
Small size and light weight: the volume and weight of permanent magnet ferrite are relatively small, which can make the design of the oxygen pump more compact and easy to carry and install.
Reduce noise: permanent magnet equipment generally has low operating noise, and can maintain a relatively quiet operating state without affecting the oxygen effect.
Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.
What is permanent magnet ferrite?
Permanent magnet ferrite is a hexagon structure compound with uniaxial anisotropy, mainly barium, strontium, lead three kinds of ferrite and their composite solid solution, there are the same magnetic and opposite magnetic points, because this kind of ferrite material in the external magnetization field disappeared, still can retain a strong constant remanent magnetic property for a long time, can be used to generate a stable magnetic field on the external space.
How to determine the performance of the product?
There are four main indicators to measure the performance of permanent magnet materials: residual magnetism, coercive force, intrinsic coercive force, and maximum magnetic energy product,The finished permanent magnet ferrite has a high coercivity and is not easy to demagnetize after magnetization.
What are the advantages of the permanent magnet ferrite we produce?
1,Stable magnetic properties: permanent magnet ferrite has high coercivity and remanence, stable magnetic properties, and is not easily affected by external influences.
2,High temperature resistance: permanent magnet ferrite has good high temperature resistance and is suitable for use in high temperature environment.
3,High temperature coefficient of resistance to saturated magnetic field: The magnetic properties of permanent magnet ferrite decay slowly at high temperatures, with a high temperature coefficient of resistance to saturated magnetic field.
4,Low cost: The raw material price of permanent magnet ferrite is low, the production process is simple, and the cost is relatively low.
5,Long service life: permanent magnet ferrite has a long service life, is not easy to demagnetize, low maintenance costs.
6,Good rare earth substitution: permanent magnet ferrite can replace some rare earth magnets, reduce the dependence on rare earth and reduce the consumption of rare earth resources.
PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS
Units | Sintered Ferrite (Ceramic) | |
Curie Temperature | ºC | 450 |
Maximum Operating Temperature | ºC | 350 |
Hardness | Hv | >530 |
Density | g/cm3 | 4.8 – 5.0 |
Relative recoil permeability | μrec | 1.05-1.1 |
Temperature Coefficient Br | %/ºC | -0.18 |
Temperature Coefficient iHc | %/ºC | 0.11-0.40 |
Anti-Bending Strength | N/m2 | (0.5-0.9)×108 |
Anti-Compressive Strength | N/m2 | ≥6.9×108 |
Anti-Tensile Strength | N/m2 | (0.2-0.5)×108 |
Specific Heat | J/kg·K | 600-900 |
Resistivity | Q.cm | >104 |
What's the application of Xinheng's permanent ferrite magnets?
Xinheng mainly manufactures the following types of ceramic arc segment magnets:
FERRITE POWDER GRADE OF MOTORCYCLE MOTORS MAGNET
|
Br(mT) | Hcb(KA/m) | Hcj(KA/m) | (BH)max(KJ/m3) | ||||
mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
Y33 | 410-430 | 4100-4300 | 220-250 | 2760-3140 | 225-255 | 2830-3200 | 31.5-35.0 | 3.9-4.4 |
Y33H | 410-430 | 4100-4300 | 250-270 | 3140-3390 | 250-275 | 3140-3450 | 31.5-35.0 | 3.9-4.4 |
Y33H-2 | 410-430 | 4100-4300 | 285-315 | 3580-3960 | 305-335 | 3830-4200 | 31.8-35.0 | 4.0-4.4 |
Y34 | 420-440 | 4200-4400 | 200-230 | 2510-2890 | 205-235 | 2570-2950 | 32.5-36.0 | 4.1-4.4 |
Y35 | 430-450 | 4300-4500 | 215-239 | 2700-3000 | 217-241 | 2730-3030 | 33.1-38.2 | 4.1-4.8 |
Y36 | 430-450 | 4300-4500 | 247-271 | 3100-3400 | 250-274 | 3140-3440 | 35.1-38.3 | 4.1-4.8 |
Y38 | 440-460 | 4400-4600 | 285-305 | 3580-3830 | 294-310 | 3690-3890 | 36.6-40.6 | 4.6-4.8 |
Y40 | 440-460 | 4400-4600 | 330-354 | 4150-4450 | 340-360 | 4270-4520 | 37.6-41.8 | 4.7-5.2 |
