Product Details
Place of Origin: Sichuan, China
Brand Name: XINHENG
Certification: IATF16949,ISO9001
Model Number: W034
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ton per year
Product Name: |
Household Appliances Ferrite Magnets |
Application: |
Home Mower |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R38.0mm-40.5rmm)*25.0mm |
Processing: |
Wet Pressing |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
960pcs |
Product Name: |
Household Appliances Ferrite Magnets |
Application: |
Home Mower |
Shape: |
Arc,Tile |
Type: |
Anisotropic Sintered Magnet |
Composite: |
Ferrite Strontium Powder |
Size: |
(R38.0mm-40.5rmm)*25.0mm |
Processing: |
Wet Pressing |
Coating: |
No Coating |
Package Size: |
340mm×255mm×75mm |
Quantity Per Carton: |
960pcs |

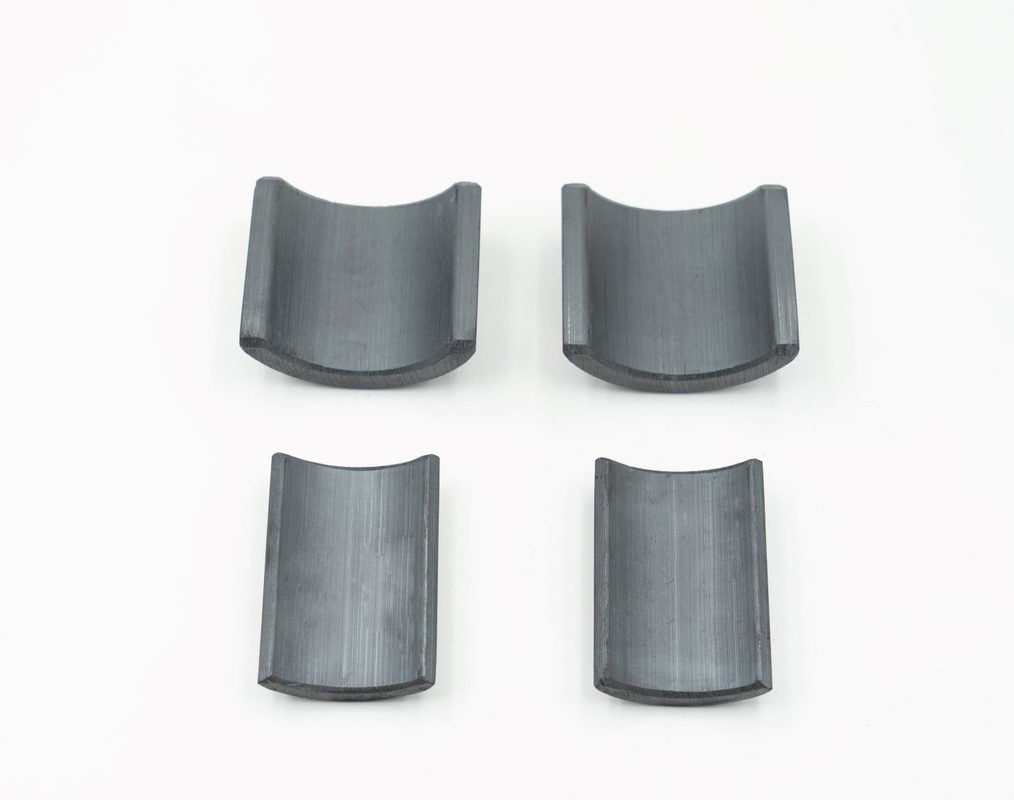

Permanent Magnet Ferrite Tile For Home Mower Household Appliances Ferrite Magnets
The role of permanent magnet ferrite in the weeder:
Motor components: In some electric weeding machines, permanent magnet ferrite can be used as a magnet for the motor to improve the efficiency and performance of the motor. Such motors are typically smaller and lighter than those using traditional magnets, while being able to deliver higher torque.
Starting and control system: permanent magnet ferrite can be applied to the starting and control module of the weeder, by generating a stable magnetic field, to achieve accurate control of the motor, and improve the response speed and control performance of the weeder.
Sensors and switches: Permanent magnet ferrites can also be used as sensor elements or switches to help automate the navigation and operating status detection of mowers. This is particularly important for the development of intelligent weeder, which can achieve automatic obstacle avoidance, area identification and other functions.
Corrosion resistance and high temperature resistance: permanent magnet ferrite has good corrosion resistance and high temperature stability, suitable for use in wet and harsh environments, extending the service life of the weeder
Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.
What is permanent magnet ferrite?
Permanent magnet ferrite is a hexagon structure compound with uniaxial anisotropy, mainly barium, strontium, lead three kinds of ferrite and their composite solid solution, there are the same magnetic and opposite magnetic points, because this kind of ferrite material in the external magnetization field disappeared, still can retain a strong constant remanent magnetic property for a long time, can be used to generate a stable magnetic field on the external space.
How to determine the performance of the product?
There are four main indicators to measure the performance of permanent magnet materials: residual magnetism, coercive force, intrinsic coercive force, and maximum magnetic energy product,The finished permanent magnet ferrite has a high coercivity and is not easy to demagnetize after magnetization.
What are the advantages of the permanent magnet ferrite we produce?
1,Stable magnetic properties: permanent magnet ferrite has high coercivity and remanence, stable magnetic properties, and is not easily affected by external influences.
2,High temperature resistance: permanent magnet ferrite has good high temperature resistance and is suitable for use in high temperature environment.
3,High temperature coefficient of resistance to saturated magnetic field: The magnetic properties of permanent magnet ferrite decay slowly at high temperatures, with a high temperature coefficient of resistance to saturated magnetic field.
4,Low cost: The raw material price of permanent magnet ferrite is low, the production process is simple, and the cost is relatively low.
5,Long service life: permanent magnet ferrite has a long service life, is not easy to demagnetize, low maintenance costs.
6,Good rare earth substitution: permanent magnet ferrite can replace some rare earth magnets, reduce the dependence on rare earth and reduce the consumption of rare earth resources.
PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS
Units | Sintered Ferrite (Ceramic) | |
Curie Temperature | ºC | 450 |
Maximum Operating Temperature | ºC | 350 |
Hardness | Hv | >530 |
Density | g/cm3 | 4.8 – 5.0 |
Relative recoil permeability | μrec | 1.05-1.1 |
Temperature Coefficient Br | %/ºC | -0.18 |
Temperature Coefficient iHc | %/ºC | 0.11-0.40 |
Anti-Bending Strength | N/m2 | (0.5-0.9)×108 |
Anti-Compressive Strength | N/m2 | ≥6.9×108 |
Anti-Tensile Strength | N/m2 | (0.2-0.5)×108 |
Specific Heat | J/kg·K | 600-900 |
Resistivity | Q.cm | >104 |
What's the application of Xinheng's permanent ferrite magnets?
Xinheng mainly manufactures the following types of ceramic arc segment magnets:
FERRITE POWDER GRADE OF MOTORCYCLE MOTORS MAGNET
|
Br(mT) | Hcb(KA/m) | Hcj(KA/m) | (BH)max(KJ/m3) | ||||
mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
Y33 | 410-430 | 4100-4300 | 220-250 | 2760-3140 | 225-255 | 2830-3200 | 31.5-35.0 | 3.9-4.4 |
Y33H | 410-430 | 4100-4300 | 250-270 | 3140-3390 | 250-275 | 3140-3450 | 31.5-35.0 | 3.9-4.4 |
Y33H-2 | 410-430 | 4100-4300 | 285-315 | 3580-3960 | 305-335 | 3830-4200 | 31.8-35.0 | 4.0-4.4 |
Y34 | 420-440 | 4200-4400 | 200-230 | 2510-2890 | 205-235 | 2570-2950 | 32.5-36.0 | 4.1-4.4 |
Y35 | 430-450 | 4300-4500 | 215-239 | 2700-3000 | 217-241 | 2730-3030 | 33.1-38.2 | 4.1-4.8 |
Y36 | 430-450 | 4300-4500 | 247-271 | 3100-3400 | 250-274 | 3140-3440 | 35.1-38.3 | 4.1-4.8 |
Y38 | 440-460 | 4400-4600 | 285-305 | 3580-3830 | 294-310 | 3690-3890 | 36.6-40.6 | 4.6-4.8 |
Y40 | 440-460 | 4400-4600 | 330-354 | 4150-4450 | 340-360 | 4270-4520 | 37.6-41.8 | 4.7-5.2 |
